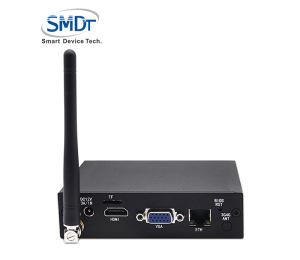

MBOX-40A Commercial Box

Size: 136*96*27mm
CPU: A40i, quad-core, maximum frequency 1.2ghz，Android 7.1
GPU: PowerVR SGX544 high-performance GPU
Memory/storage: Standard 1G(2G Optional)/Standard 8G(16/32G Optional)
Built-in ROM: 2KB EEPROM

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Features

◆ Classic plastic box, compatible with IOT-20A and DS831 structural design.

◆ Complete functions, support audio and video output, network links, content storage, interface extension and other functions in one.

◆ Maximum support HDMI 1080P HD video output.

◆ Support network port, WIFI, Bluetooth, built-in PCI-E 4G interface. Support a variety of PCI-E 4G modules such as Huawei, ZTE and Longshang, and supports Internet access.

◆ Rich extension interface, 2 USB ports(1*USB OTG,1*USB HOST).

◆ Multiple function keys（1*power button，1*upgrade uboot button，1*customizable keys）.

◆ Support Android system customization, provide system call interface API reference code, perfect support customer upper application APP development.

◆ Seamless connection，support MIPS release software and other mainstream information release software, convenient management.

Product hardware indicators

The Main Product Hardware Index
Size	1369627mm
CPU	A40i, quad-core, maximum frequency 1.2ghz，Android 7.1
GPU	PowerVR SGX544 high-performance GPU
Memory/storage	Standard 1G(2G Optional)/Standard 8G(16/32G Optional)
Built-in ROM	2KB EEPROM
HDMI output	1, Support 1080P output
Video format	Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4, etc
Picture format	Support BMP、JPEG、PNG、GIF
Headphone output	Support one-way three/four-segment headset insertion
Audio input	Support one-way MICIN
USB2.0 port	2*USB HOST
Ethernet	1，10/100M Adaptive Ethernet
WIFI、BT	Built-in WIFI，BT4.0
TF card	Support TF card
RTC real-time clock	Support
Timing switcher	Support
System upgrade	Support local TF,USB upgrade
